Product details

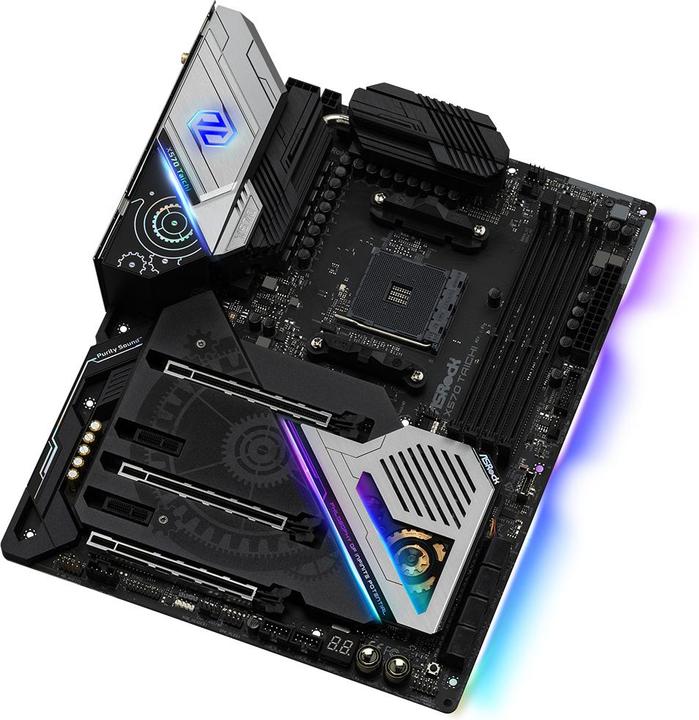

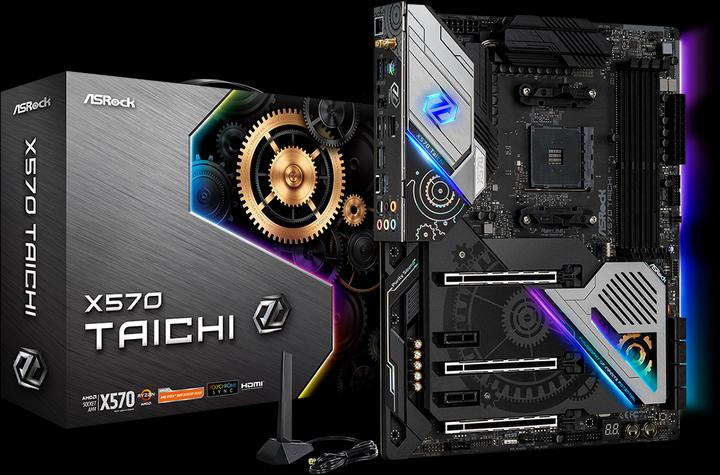

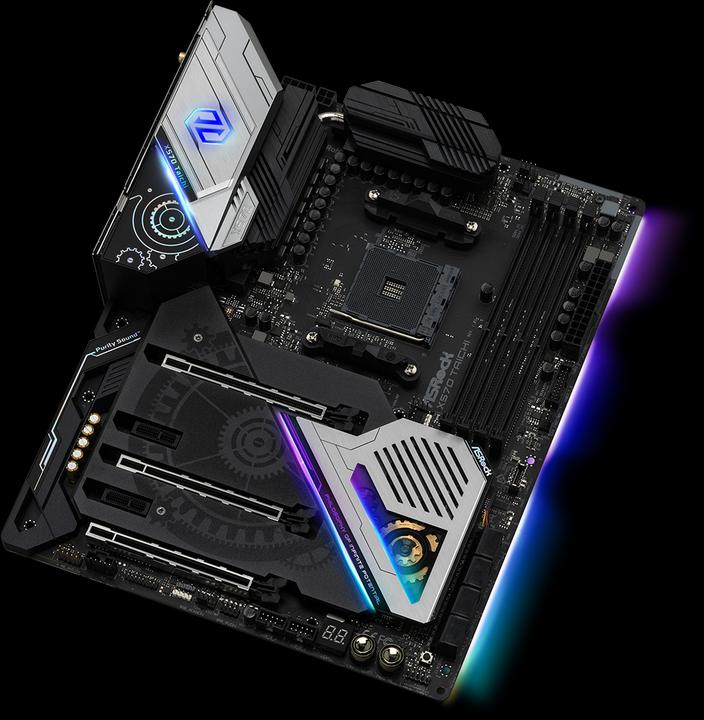

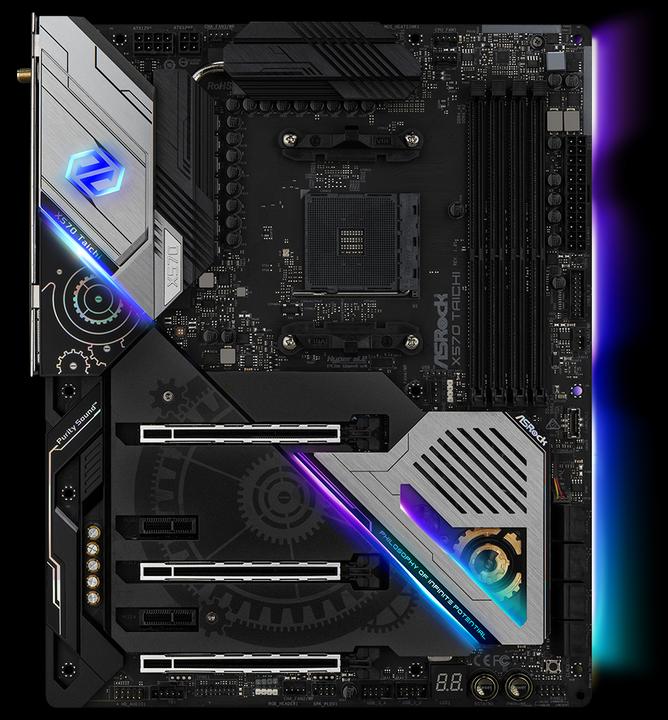

The X570 Taichi gaming motherboard features extensive RGB LED lighting that can be controlled via the Polychrome Sync software. For graphics cards, there are two PCIe 4.0 slots in x16 format, directly connected to the Ryzen 3000 processor via a total of 16 PCIe 4.0 lanes. The third PCIe x16 slot is connected to the chipset via 4 lanes (PCIe 4.0 with Ryzen 3000; PCIe 3.0 with all previous generations). Additional features include a WLAN/BT module, Gigabit LAN (Intel I211AT), onboard sound (Realtek ALC1220), reinforced PCIe slots, and numerous internal headers.
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation, Ryzen 5th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (2x), M.2 PCIe (1x), S-ATA III (8x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Power-On Button, Reset button, Thunderbolt header |
Item number | 11357030 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBA80-A0UAYZ |
Release date | 7/7/2019 |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD X570 |
Mainboard features | Power-On Button, Reset button, Thunderbolt header |
Operating system compatibility | Linux, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation, Ryzen 5th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2133, DDR4-2400, DDR4-2667, DDR4-2933, DDR4-3200, DDR4-3466, DDR4-4133, DDR4-4200, DDR4-4266, DDR4-4300, DDR4-4400 |
Max. RAM OC | 4666 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz, 4300 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

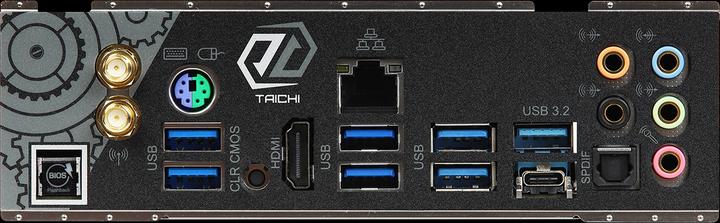

Video connections | HDMI (1x) |
Video connection version | HDMI 2.0 |
Multi-GPU technology | AMD 3-Way CrossFireX, AMD CrossfireX, AMD Quad-GPU CrossFireX, NVIDIA Quad SLI, NVIDIA SLI |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I211AT |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Coaxial S/PDIF (1x), Jack 3.5mm (5x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCI/SATA Combo (2x), M.2 PCIe (1x), S-ATA III (8x) |
Expansion slot | PCI Express x1 (2x), PCI Express x16 (3x) |
PCI express version (max.) | 4 |
Number of fan connector | 7 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 2 (1x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

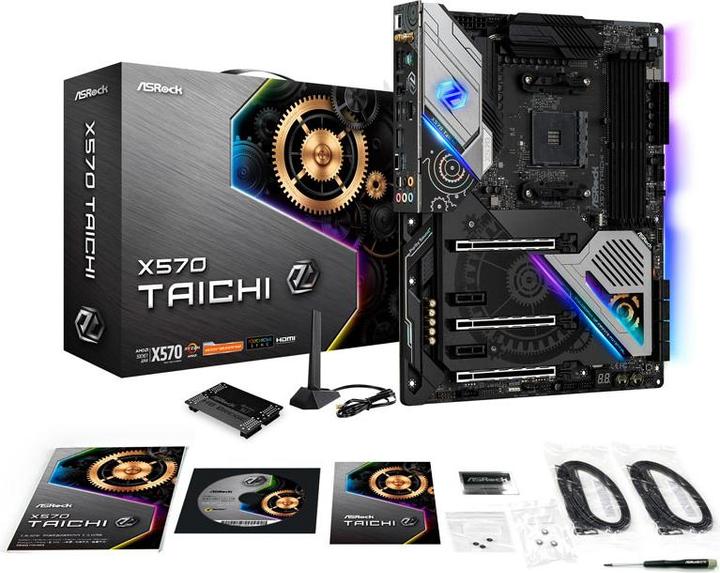

Scope of delivery | - ASRock XFast LAN, Software- ASRock Polychrome SYNC |
Length | 305 mm |
Width | 244 mm |
Height | 350 mm |
Weight | 1500 g |
Length | 42 cm |
Width | 34.70 cm |
Height | 10 cm |
Weight | 3.12 kg |
Product Safety |
Specifications may include unverified machine translations.
