ASUS ROG STRIX B650E-F GAMING WIFI

AM5, AMD B650E, ATX
Price in EUR including VAT
116Ratings
Test reportsVery good based on 1 test
Delivered Fri, 4/4
More than 10 items in stock
free shipping

Product details

This powerful machine is the centerpiece of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, robust cooling provided by integrated heatsinks, and advanced power design tailored for Ryzen processors, the ROG Strix B650E-F leaves its competition in the dust.

Key specifications

Processor family
Ryzen 5 7th Gen,
Ryzen 7 7th Gen,
Ryzen 9 7th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
24-pin ATX power connector (1x),
4-pin ATX 12V (1x),
4-pin CPU (1x),
4-pin Molex (5x),
8-pin ATX 12V (2x)
Wireless transmission
Bluetooth,
Wi-Fi
Mainboard features
Clear CMOS Button,
COM Port Header,
RGB header,
S/PDIF header,
Thunderbolt header
Item number
22605357

General information

Manufacturer
Category
Manufacturer no.
90MB1BQ0-M0EAY1
Release date
22.9.2022
External links

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD B650E
Mainboard features
Clear CMOS Button,
COM Port Header,
RGB header,
S/PDIF header,
Thunderbolt header
Operating system compatibility
Windows 11 Home,
Windows 11 Pro
BIOS type
UEFI AMI
Wireless transmission
Bluetooth,
Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Ryzen 5 7th Gen,
Ryzen 7 7th Gen,
Ryzen 9 7th Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR5,
DDR5-4800,
DDR5-5200,
DDR5-5600
Max. RAM OC
8000 MHz
Supported memory speed
4800 MHz,
5000 MHz,
5200 MHz,
5400 MHz,
5600 MHz
Memory type
DDR5 RAM
RAM buffer
ECC Registered

Graphics properties

Video connections
DisplayPort (1x),
HDMI (1x)
Video connection version
Display port 1.4,
HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel
Max. port speed
2.50 Gbit/s

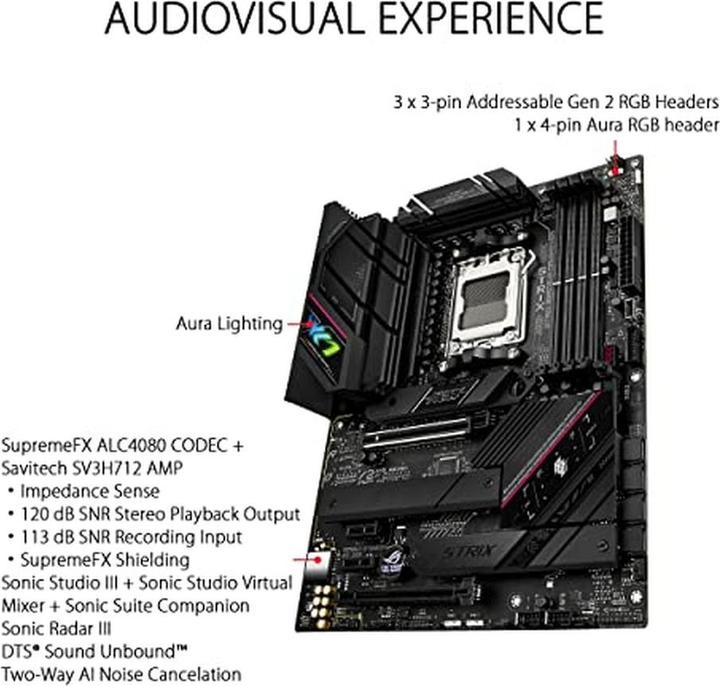

Audio

Chip
ALC4080
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x)

Data storage

RAID configuration
0,
1,
10

Internal interfaces

Internal connection options
24-pin ATX power connector (1x),
4-pin ATX 12V (1x),
4-pin CPU (1x),
4-pin Molex (5x),
8-pin ATX 12V (2x)
Expansion slot
PCI Express x1 (2x),
PCI Express x16 (1x)
PCI express version (max.)
5

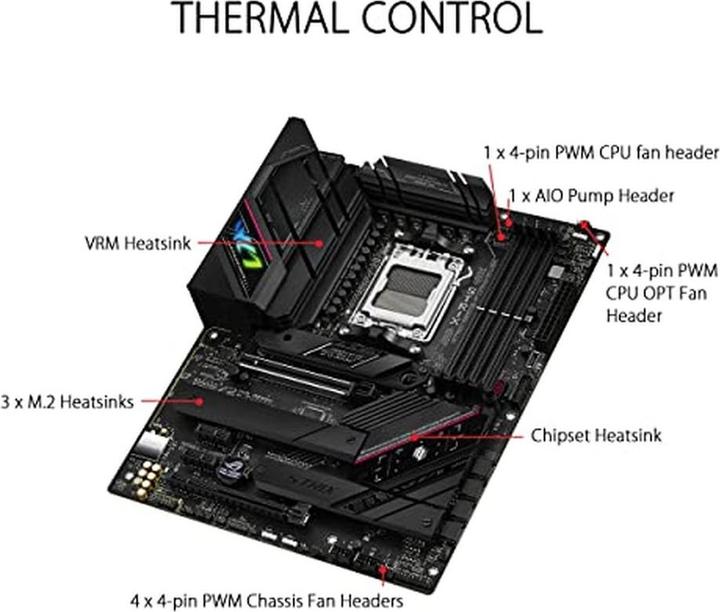

Number of fan connector
7

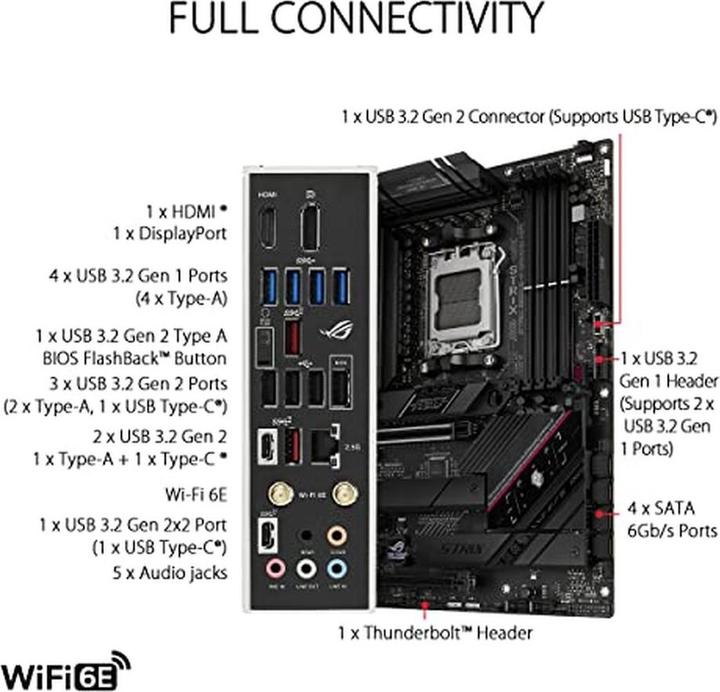

Further connections

USB ports
USB-A,
USB-C
Exact USB ports
USB-A 2.0 (4x),
USB-A 3.2 Gen 2 (2x),
USB-C 3.2 Gen 2 (1x)
Peripheral connections
USB 2.0 Type-A (2x),
USB 3.2 Gen 2 (6x),
USB Type-C (2x)

Power supply

Power connectors
8-pin PCI-E

Sustainability

Manufacturer commitment
RE100,
SBTi

Product dimensions

Length
244 mm
Edited by a customer
Width
305 mm
Edited by a customer
Height
50 mm
Edited by a customer
Weight
2000 g
Edited by a customer

Package dimensions

Length
34.90 cm
Width
27.80 cm
Height
8.10 cm
Weight
2.10 kg
