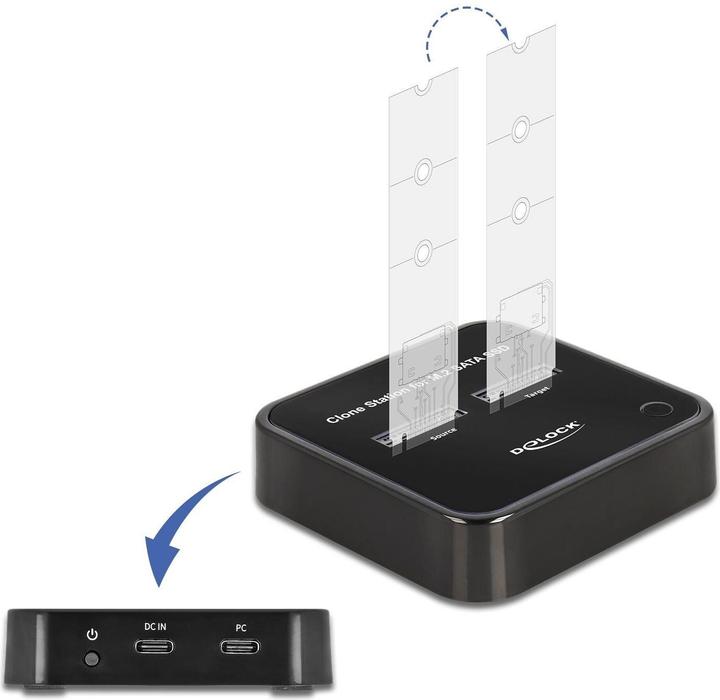

This M.2 docking station from Delock allows the operation of two M.2 SATA SSDs and can be connected to a PC or notebook via USB. The included USB cable enables connection to a free USB-C™ port.

M.2 SATA SSD Clone Function
The clone function allows data to be copied from one SSD to another without the need for a PC.

Ideal Testing Equipment
The robust housing allows for easy insertion of the storage, making it ready for immediate use. No screws, tools, or additional accessories are required, allowing for quick SSD swaps.

Specifications

• Connections:

1 x USB 10 Gbps USB Type-C™ port
2 x M.2 Key M slots
1 x USB Type-C™ port (power supply)

• Chipset: Asmedia ASM1352R, VIA VL160
• Supports M.2 modules with Key B+M based on SATA
• Data transfer rate up to 6 Gbps
• Supports UASP
• LED indicators for power, access, and copy status
• Function buttons:

1 x Clone button
1 x Power switch

• Bootable
• Dimensions (LxWxH): approx. 72 x 79 x 18 mm
• Hot Plug, Plug and Play

Power Supply Specification

• Plug-in power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 5.0 V / 3.0 A

System Requirements

• Android 10.0 or higher
• Chrome OS 83.0 or higher
• iPad Pro (2018)
• Linux Kernel 5.4 or higher
• Mac OS 10.15.6 or higher
• Windows 8.1/8.1-64/10/10-64/11
• Device with a free USB Type-C™ port or a free Thunderbolt™ 3 port

Package Contents

• M.2 Docking Station
• USB-C™ to USB-C™ cable, length approx. 45 cm
• USB-C™ to USB Type-A cable, length approx. 80 cm (power supply)
• External power supply
• User manual

Packaging

• Retail Box.
