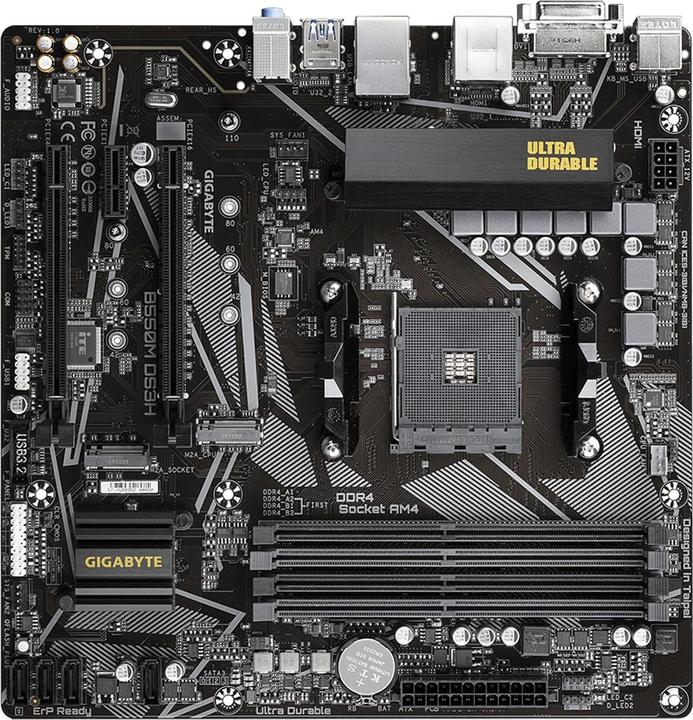

Gigabyte B550M DS3H

AM4, AMD B550, mATX
Price in EUR including VAT
27Ratings
Delivered Thu, 13/3
9 items in stock
free shipping

Product details

The B550 chipset is the heart of the Gigabyte B550M DS3H motherboard and has been specifically optimized for the Ryzen CPUs of the 3000 series (Matisse). B550 motherboards support all features of the Ryzen processors, foremost among them the PCI Express standard in version 4.0. PCIe 4.0 is backward compatible and can be used with all expansion cards from previous generations.

Key specifications

Processor family
Ryzen 3rd generation
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCI/SATA Combo (1x),
M.2 SATA (1x),
S-ATA III (4x)
Mainboard features
Error Correcting Code
Item number
13502092

General information

Manufacturer
Category
Manufacturer no.
B550M DS3H
Release date
8.6.2020

Motherboard properties

Form factor
Micro ATX (mATX)
Processor socket
AM4
Chipset
AMD B550
Mainboard features
Error Correcting Code
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Ryzen 3rd generation

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-2133,
DDR4-2400,
DDR4-2667,
DDR4-2933,
DDR4-3200,
DDR4-3333,
DDR4-3600,
DDR4-4000,
DDR4-4400
Max. RAM OC
4733 MHz
Supported memory speed
2133 MHz,
2400 MHz,
2666 MHz,
2933 MHz,
3200 MHz,
4000 MHz,
4400 MHz,
4800 MHz,
5000 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x),
DVI-D (1x),
HDMI (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Gigabit Ethernet
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC887
Audio channel
7.1 Channel
Audio Connections
Audio In,
Audio Out (1x),
Jack 3.5mm Microphone In (1x)

Data storage

RAID configuration
0,
1,
10

Internal interfaces

Internal connection options
M.2 PCI/SATA Combo (1x),
M.2 SATA (1x),
S-ATA III (4x)
Expansion slot
PCI Express x16 (1x)
PCI express version (max.)
4
Number of fan connector
2

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (4x),
USB-A 3.0 (1x)
Peripheral connections
USB 2.0 Type-A (4x),
USB 3.0 Type-A (4x)

Power supply

Power connectors
12VHPWR

Scope of delivery

Scope of delivery
Hours,
Realtek 8118

Product dimensions

Length
244 mm
Width
244 mm
Height
65 mm
Weight
27.60 g

Package dimensions

Length
27 cm
Width
27 cm
Height
6 cm
Weight
920 g
