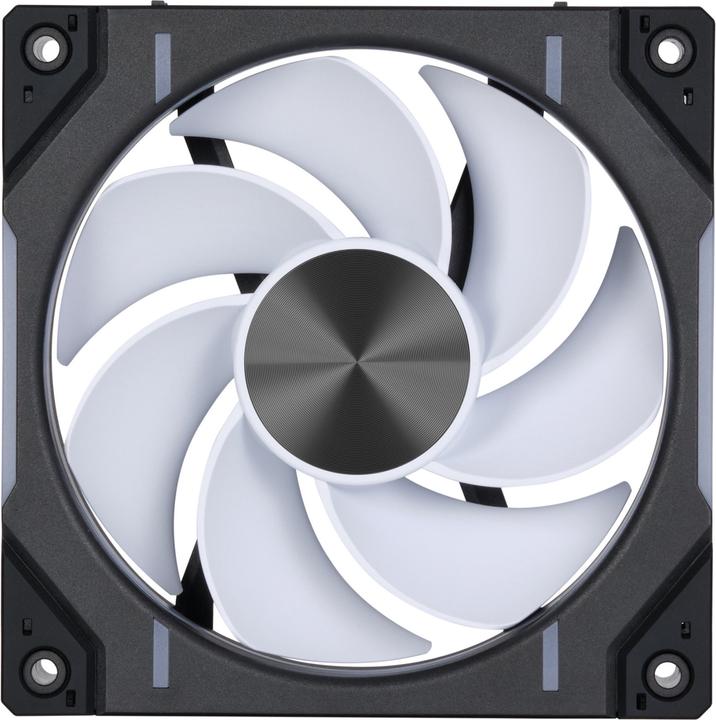

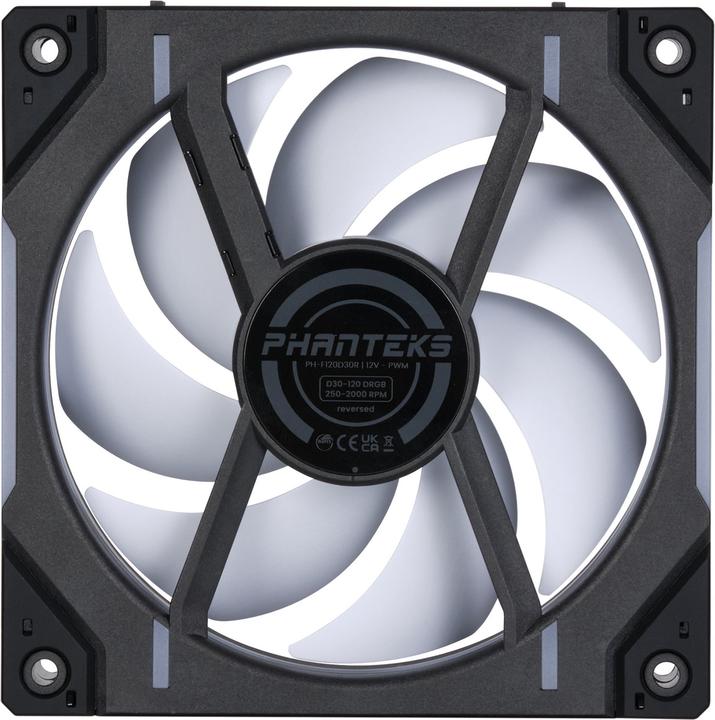

Phanteks D30 PWM Reverse Airflow

120 mm, 1 x
Price in EUR including VAT, free shipping
4Ratings
BrandMore from Phanteks
Delivered between 11/1/2025 and 17/1/2025
More than 10 items in stock at supplier

Product details

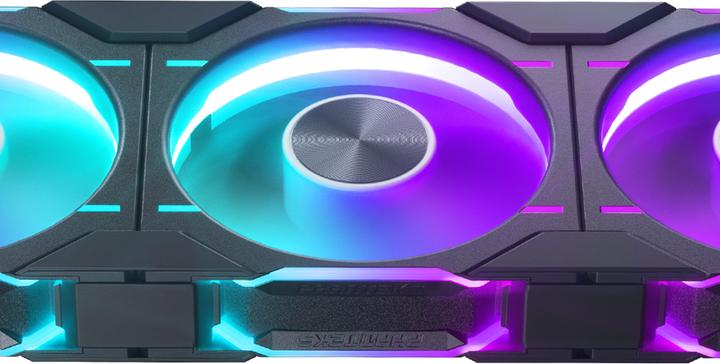

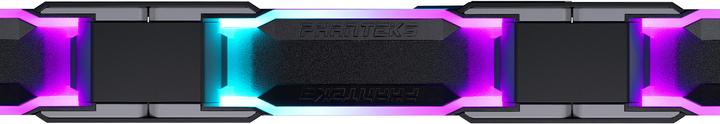

The Phanteks D30-120 is equipped with integrated D-RGB lighting throughout the frame and on the fins on all sides. Multiple D30-120 fan frames can be connected into one with bridge connectors and screw

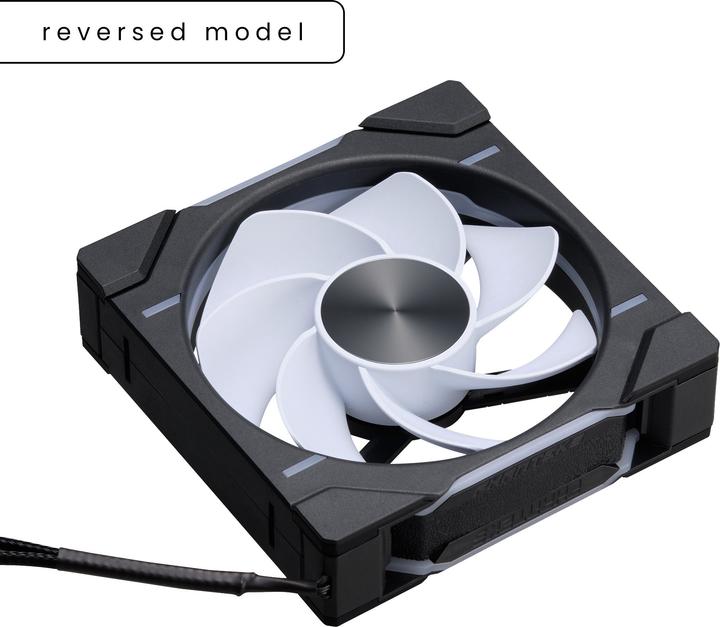

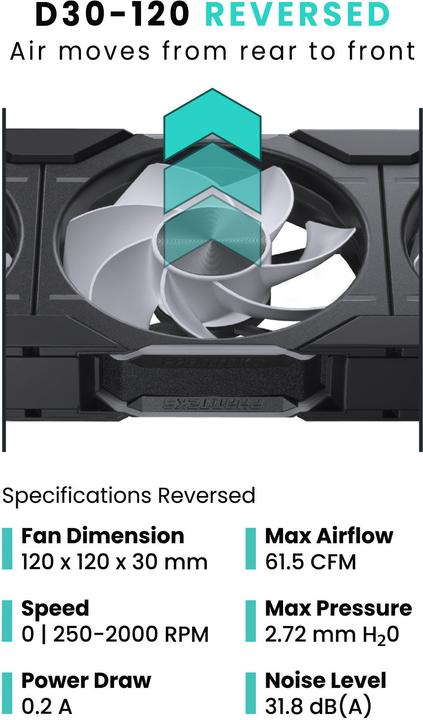

cover plates to reduce cables, resulting in extremely clean builds. The D30-120 combines premium D-RGB illumination with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, making it a true premium D-RGB fan for modern systems. The D30-120 is available in two airflow direction models: normal and reverse. This unique option enables the ultimate fan configuration for any system.

Key specifications

Fan dimension
120 mm
Items per sales unit
1 x
power connector
3-pin,
4-pin PWM
Airflow
104.40 m³/h
Max. noise level
31.80 dB
LED colour
RGB
Item number
24924478

General information

Manufacturer
Phanteks
Category
PC fans
Manufacturer no.
PH-F120D30R_DRGB_PWM_BK01
Release date
28.3.2023

Colour

Colour group
Black
Exact colour description
Black

Fan properties

Fan dimension
120 mm
PC fan type
PWM fan,
RGB Fan
Fan type
Standard
Max. Speed
2 RPM
Max. noise level
31.80 dB
Airflow
104.40 m³/h
Static pressure
2.72 mmH20
LED colour
RGB

Connections

power connector
3-pin,
4-pin PWM

Power supply

Power consumption (active)
1.80 W
input voltage
12 V
Cable length
0.70 m
Electric current
0.45 A

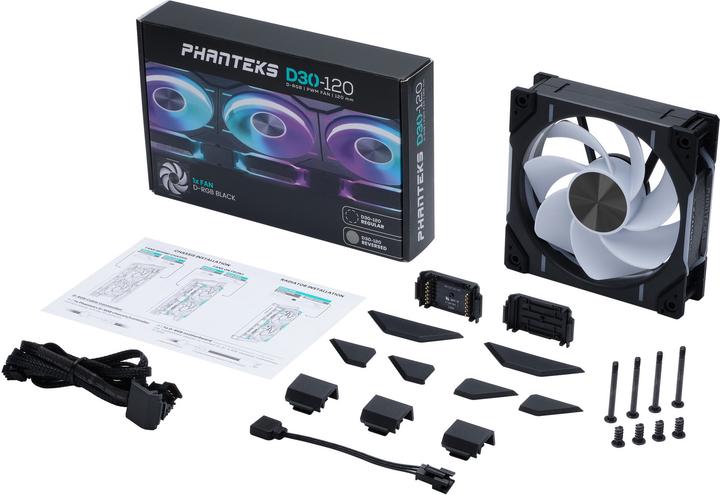

Scope of delivery

Items per sales unit
1 x
Scope of delivery

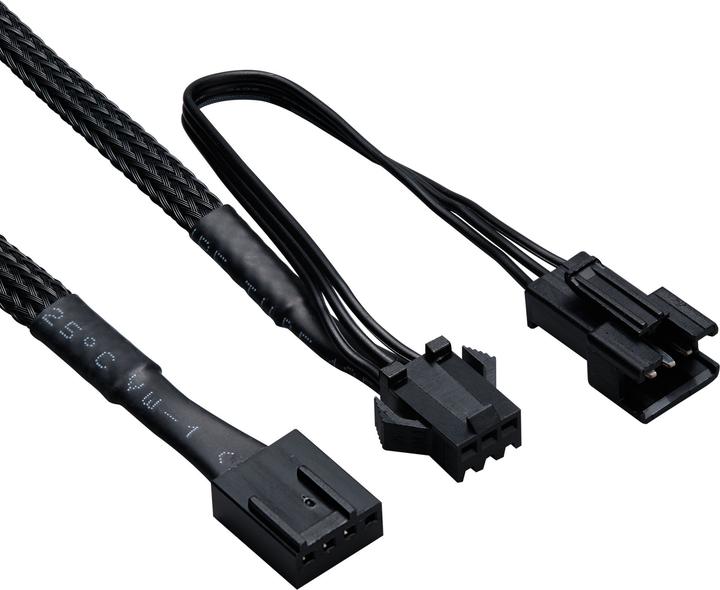

1x 3-pin ARGB (+5V/DATA/GND),
4-pin PWM with daisy chain socket

Origin

Country of origin
China

Product dimensions

Length
120 mm
Width
120 mm
Height
30 mm
Weight
200 g

Package dimensions

Length
20.80 cm
Width
12.80 cm
Height
3.60 cm
Weight
371 g
