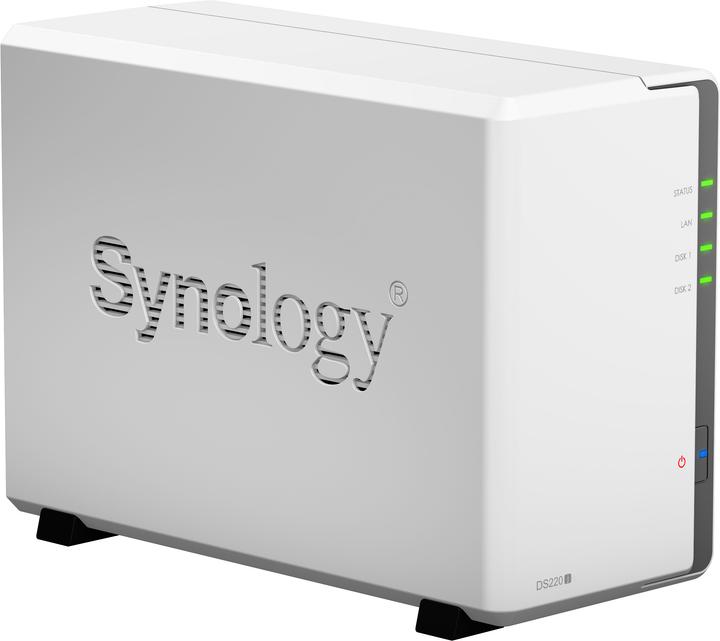

Synology DS220j

0 TB
Show all

Product details

Synology DiskStation DS220j is an entry-level network-attached storage solution for your household to store and share photos, videos, documents, and all types of personal data. This 2-bay private cloud solution offers complete and intuitive data protection methods, allowing you to easily back up computer data and mobile photos with just a few clicks.

Key specifications

Max. number of hard disks
2
Memory
0.51 GB
NAS HDD assembly
NAS Empty Enclosure
Total storage capacity
0 TB
RAID configuration
0,
1,
JBOD
Network connections
RJ45 Gigabit Ethernet (1x)
Exact USB ports
USB-A 3.0 (2x)
Item number
12825568

General information

Manufacturer
Category
Manufacturer no.
DS220J
Release date
12.3.2020

Colour

Colour group
White
Exact colour description
White

NAS properties

NAS HDD assembly
NAS Empty Enclosure
Model
Desktop
Max. number of hard disks
2
Hard drive form factor
2.5",
3.5"
RAID configuration
0,
1,
JBOD
Memory type
DDR4-RAM
Memory
0.51 GB
Maximum possible memory
0.51 GB
Add-on packages
Synology: antivirus, audio station, station of cloud, cloud sync, directory server, DNS server, printer server, DynDNS, download station, iTunes server, mail server, media server, DLNA Certification, photo station, RADIUS server, surveillance station, time backup, UPnP, video station, VPN server
NAS features – model-specific
Max. number of simultaneous connections 256,
User accounts max. 1024

Hard drive slots

Data storage configuration
0 TB
Total storage capacity
0 TB
Hard disk additional functions
Hot plugging

Processor

Processor type
Realtek RTD1296
Processor clock frequency
1.40 GHz
Max. turbo clock rate
1.40 GHz
Number of processor cores
4 -Core

Network connections

Network connections
RJ45 Gigabit Ethernet (1x)

Wireless transmission

Connectivity
Ethernet

Additional connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (2x)
Data ports
USB 3.2 Gen 1 Type-A (2x)

Video surveillance

Number of camera licenses included
2 x
Max. number of cameras
12 x

Mains supply properties

Power consumption
60 W
Number of fans
1 x
Fan diameter
92 mm
Redundant power supply unit
Yes

Scope of delivery

Scope of delivery
Power supply unit incl. power cable,
Quick Installation Guide,
RJ45 cable

Product dimensions

Length
22.25 cm
Width
10 cm
Height
16.50 cm
Weight
0.88 kg

Package dimensions

Length
28.50 cm
Width
27 cm
Height
12 cm
Weight
1.81 kg

Here you can see the lowest price of the day over time. Learn more

Reviews & Ratings

Translation: machine translated
Overall ratingVery good80/100
Without ratingNo rating
DigitalPhoto Logo
DigitalPhotoNAS-Systeme - Für Fotos und Videos: Speichersysteme im TestReleaseJuly 2023
  • PositiveNetwork storage
  • PositiveQuiet
  • PositivePower-saving
  • PositiveEncryption
  • PositiveAll common NAS functions available
  • NegativeOnly one drive bay
Very good88/100
Computer Bild Logo
Rank 3 out of 5Computer BildTest NAS-Festplatten - Fünf kompakte Modelle im TestReleaseJanuary 2023
  • PositiveSimple set up
  • PositiveVery large range of functions
  • NegativeSlow when copying smaller files

The DS220j uses the same operating system as the test winner - the range of functions is practically the same. Synology has mainly made savings in the equipment: there is only one network socket. In addition, replacing the hard drive is more cumbersome. The speed drops noticeably with smaller files.

Go to complete test report
Good65/100
stereoplay Logo
stereoplaySingle testReleaseJuly 2021

With the DS220j, Synology offers a NAS server in a reduced configuration. This is noticeable for audio use by the absence of the one-touch USB backup, but also of Roon and other special audio servers. The strengths lie in the quiet operation and the price.

Very good87/100
PC Magazin Logo
PC MagazinSingle testReleaseMay 2020

If you can do without the Linux file system Btrts, the DS218j is a fast, functional and particularly energy-saving multimedia NAS for the home network - including comprehensive image management.

Good79/100
PC Welt Online Logo
PC Welt OnlineSingle testReleaseMay 2020
  • PositiveQuiet in operation + Comprehensive firmware
  • PositiveInexpensive to purchase
  • NegativeSlab mounting and changing somewhat cumbersome

With the DS220j NAS model, Synology fulfils what is promised to the user: A solid two-bay NAS for home use. There are no gimmicks, but the design is well thought out. The NAS empty enclosure is decently fast in data transfer, works quietly and is very inexpensive - ideal for entry-level use and a combination that helps the model to its current price-performance victory.
