Siemens HZ9VDKR2
Only 3 items in stock at supplier
Product details

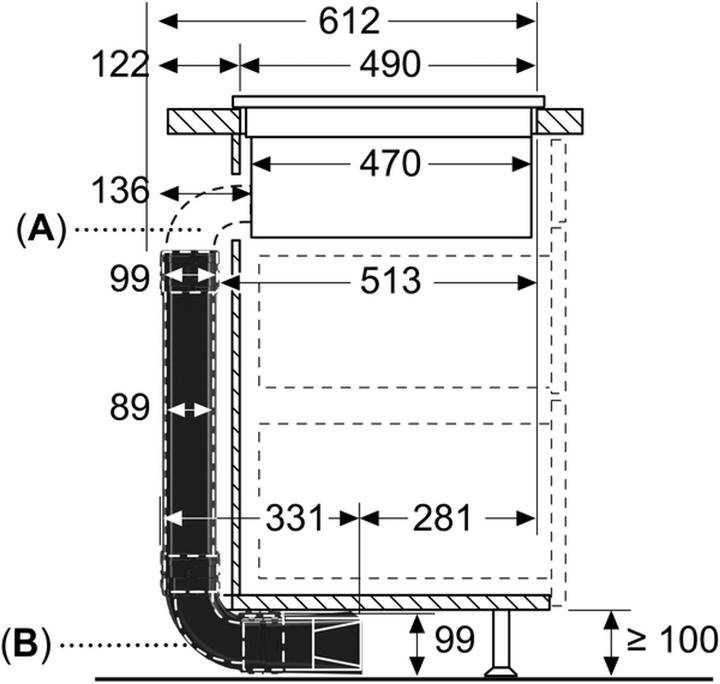

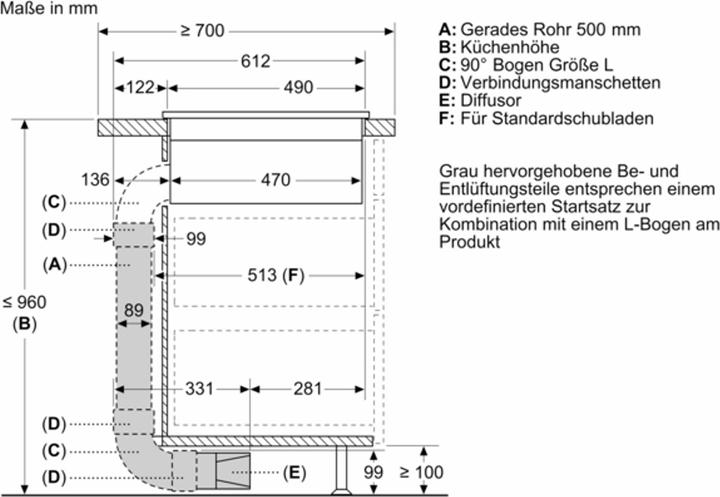

Accessory set for partial ducted recirculation of your cooktop with an integrated ventilation module. It is to be used in combination with the flat duct elbow already included in the appliance set. The set consists of: 3 female connection sleeves for combining male flat duct elements, one straight flat duct piece (male, 500 mm), one 90° vertical flat duct elbow (L radius, male), and a diffuser element (male) that can be connected to the flat duct elements to distribute the outgoing air in the base area for partial ducted recirculation configurations. The elements allow installations in countertop heights up to 960 mm. The accessory set meets the needle flame test (according to IEC 60695-11-5) and the building material class B1 (according to DIN 4102-1).
Accessory type | Extractor bonnet recirculation module |
Length | 59.50 cm |
Width | 40 cm |
Height | 17.50 cm |
Item number | 20851689 |
