ASUS PRIME B450M-A II
AM4, AMD B450, mATXPrice in EUR including VAT, free shipping
Delivered between 3/1/2025 and 7/1/2025
More than 10 items in stock at supplier
More than 10 items in stock at supplier
Product details
The B450 chipset is the heart of the ASUS PRIME B450M-A II motherboard and has been specially optimised for the Ryzen CPUs of the 2000 series (Pinnacle Ridge). B450 motherboards support all features of
the second-generation Ryzen processors, such as the XFR2 overclocking feature. In addition, the mainboards support up to 64 GB of RAM with a guaranteed clock speed of 2,666 megahertz. Depending on the motherboard, significantly higher clock speeds are possible via overclocking and the B450 chipset also enables overclocking of the processor.
| Processor family | Ryzen 3 3rd Gen, Ryzen 5 3rd Gen, Ryzen 7 3rd Gen, Ryzen 9 3rd Gen |
| Memory type | DDR4-RAM |
| Internal connection options | M.2 PCIe (1x), S-ATA III (6x), USB 2.0 Header (2x), USB 3.0 Header (1x) |
| Peripheral connections | PS/2 Combo |
| Item number | 13984513 |
| Manufacturer | |
| Category | |
| Manufacturer no. | 90MB15Z0-M0EAY0 |
| Release date | 7.10.2020 |
| Form factor | Micro ATX (mATX) |
| Processor socket | AM4 |
| Chipset | AMD B450 |
| Mainboard features | Clear CMOS Button, COM Port Header, Error Correcting Code, Front panel audio connector, RGB header, S/PDIF header |
| Operating system compatibility | Windows 10, Windows 7 |
| Peripheral connections | PS/2 Combo |
| BIOS type | UEFI AMI |
| Processor clock frequency | 2666 MHz |
| Processor family | Ryzen 3 3rd Gen, Ryzen 5 3rd Gen, Ryzen 7 3rd Gen, Ryzen 9 3rd Gen |
| Memory form factor | DIMM |
| Number of pins | 288 x |
| Number of memory modules (RAM) | 4 x |
| Max. memory (RAM) | 128 GB |
| Memory chip | DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2800, DDR4-3000, DDR4-3200, DDR4-3300, DDR4-3400, DDR4-3466, DDR4-3600, DDR4-3733, DDR4-3866, DDR4-4000, DDR4-4400 |
| Max. RAM OC | 4400 MHz |
| Supported memory speed | 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz |
| Memory type | DDR4-RAM |
| RAM buffer | Error Correcting Code, Unbuffered |

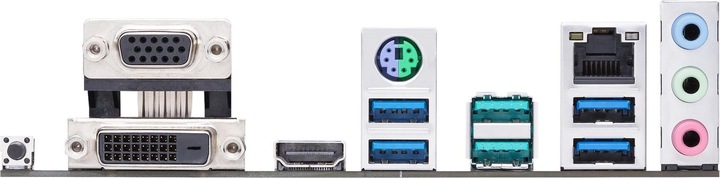

| Video connections | D-Sub (1x), DVI-D (1x), HDMI (1x) |
| Video connection version | Display port 1.2, HDMI 2.0b |
| Multi-GPU technology | AMD 2-Way CrossFireX |
| Network connections | RJ45 (1x) |
| Ethernet controller brand | Realtek |
| Ethernet controller | Realtek RTL8111H |
| Max. port speed | 1 Gbit/s |
| Chip | Realtek ALC887 |
| Audio channel | 7.1 Channel |
| Audio Connections | Jack 3.5mm (3x) |
| Internal connection options | M.2 PCIe (1x), S-ATA III (6x), USB 2.0 Header (2x), USB 3.0 Header (1x) |
| Expansion slot | PCI Express x1 (2x), PCI Express x16 (1x) |
| PCI express version (max.) | 3 |
| Number of fan connector | 2 |
| Power connectors | 24-pin EATX, 8-pin ATX 12V |
| Manufacturer commitment | RE100, SBTi |

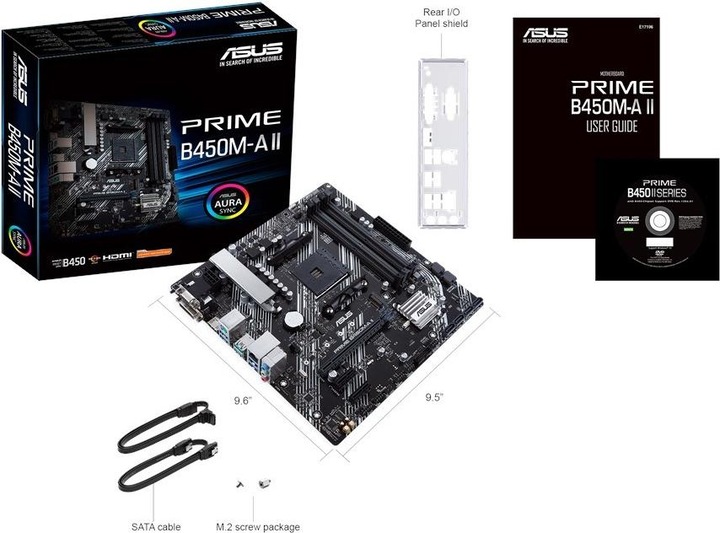

| Scope of delivery | Sata Cables |
| Length | 244 mm |
| Width | 244 mm |
| Height | 244 mm |
| Weight | 849 g |
| Length | 27 cm |
| Width | 27 cm |
| Height | 5.10 cm |
| Weight | 975 g |
Specifications may include unverified machine translations.
