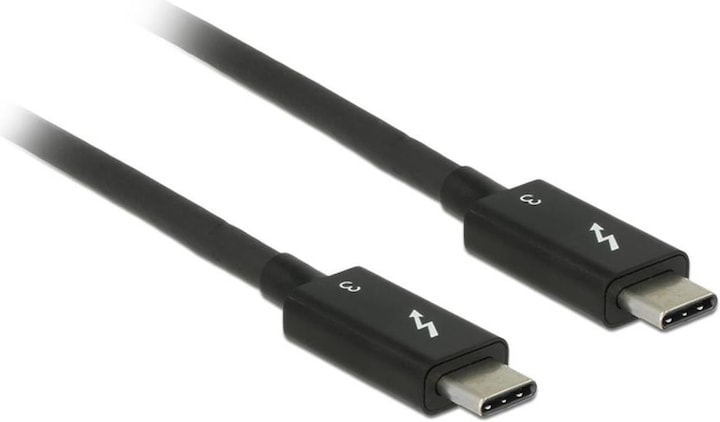

Delock Thunderbolt 3 cable

card readers and docking stations, via a Thunderbolt 3 port of a PC or notebook. The cable enables data transfer rates of up to 20 Gb/s and supports USB as well as DisplayPort, PCI Express and Ethernet data transfer. For example, it is possible to connect a 5K or 4K DisplayPort monitor, as well as USB 3.1 Gen 1 devices. Also the power supply of connected devices with a power up to 100 W is possible.

reference
The maximum data transfer rate of 40 Gb/s achievable with Thunderbolt 3 can only be achieved with a 0.5 m long cable (Delock 84844).

Specification
- Connections:
1 x Thunderbolt 3 USB Type-C 24 Pin Connector >
1 x Thunderbolt 3 USB Type-C 24 Pin Connector
- Chipset: Cypress E-Marker
- Conductor cross section:
32 + 34 AWG Data cable
24 + 34 AWG Power line
- Cable diameter: approx. 4.4 mm
- Conductor: 8 x coaxial for SuperSpeed USB, 1 x twisted pair for USB 2.0
- Contacts with gold plating
- Triple shielded cable
- Data transfer rates:
Thunderbolt 3 up to 20 Gb/s
DisplayPort 1.2a up to 21.6 Gb/s
SuperSpeed USB up to 5 Gb/s
Thunderbolt networking up to 10 Gb/s (peer-to-peer)
- Monitor resolution up to:
1 x 5120 x 2880 30 Bit @ 60 Hz or
1 x 4096 x 2160 30 bit @ 60 Hz
(depending on system and connected hardware)
- Supports data and video over a single cable
- Supports PCI Express 3.0 protocol (4 lanes)
- Supports DisplayPort 1.2a Protocol (8 Lanes, HBR2 and MST)
- Cascadable up to 6 Thunderbolt devices (Daisy Chain)
- Dual channel, bi-directional data transmission
- Power supply via USB Power Delivery up to 100 W (20 V / 5 A)
- Power supply for Thunderbolt 3 devices with bus power (max. 15 W)
- Colour: black

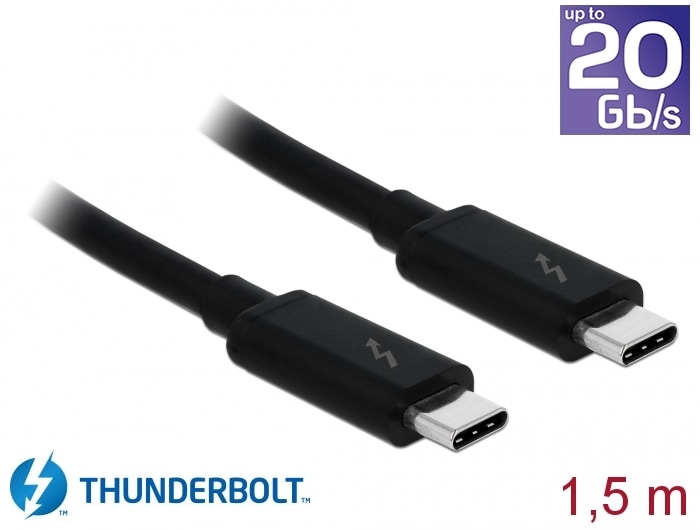

- Length without connections: approx. 1.5 m
